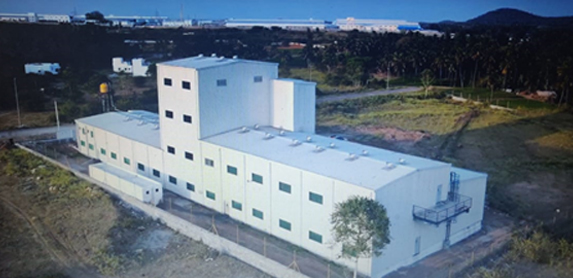

CUSTOM DESIGNED BUILDING FOR RUBBER COMPOUNDING & MIXING
Contact

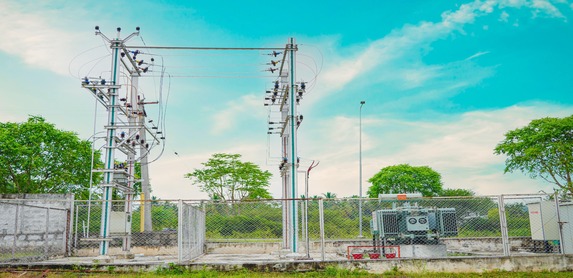

RELIABLE AVAILABILITY OF HT POWER FROM GRID
Contact

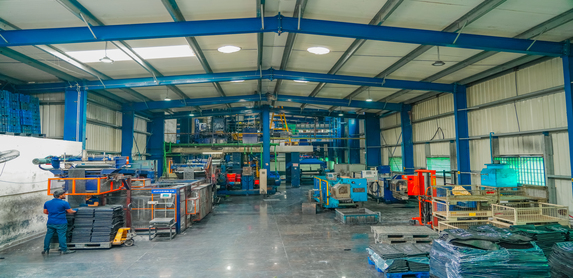

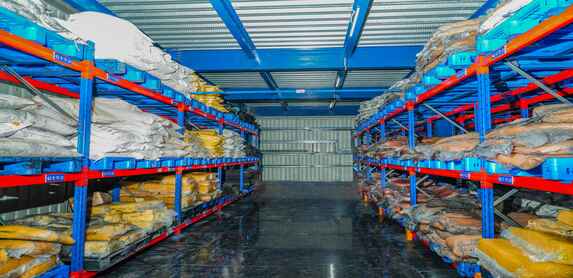

INFRASTRUCTURE FOR HANDLING BULK RAW MATERIALS & WAREHOUSING
Contact
RUBBER COMPOUNDING & MIXING

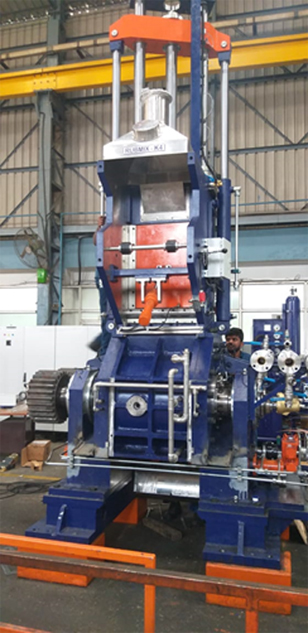

SVAN has chosen intermeshing mixing technology with an HF K4 (M5) Intermix (91 Liters)

Key features:


Make:
HF Mixing – RUBMIX Series
Mixer:
Intermix
Size:
K4-M5 - 91 liters chamber capacity
Batch size:
70-75 kgs per batch
Rotor Speed:
Variable Frequency with Rotor speed range 6-60 rpm
RAM:
Hydraulic RAM with thrust pressure of 100 kgs/cm2
Process Control
Siemens S7-1500 series PLC supported by HMI software
Automation / Feeding
Chemical Batch automation
Automated Feed conveyor
Semi-auto feeding system for Carbon & Plasticizer
Dump-Mill
22x60 Dump Mill (Italmac Make)
Variable speed drive (0-20 rpm control)
Batch-Off
10 MTR length Batch-Off + Dip-Tank + Marker + Cooling + Wig-Wag
Contact

The mixing line is designed for the smooth flow of rubber compound through a sequential arrangement with integrated conveyors

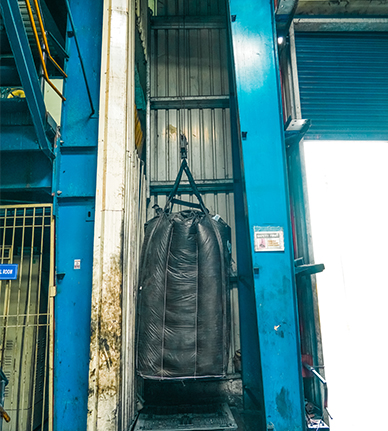

Jumbo Bags

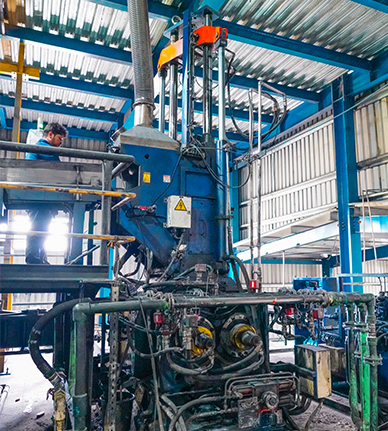

Intermeshing Mixer

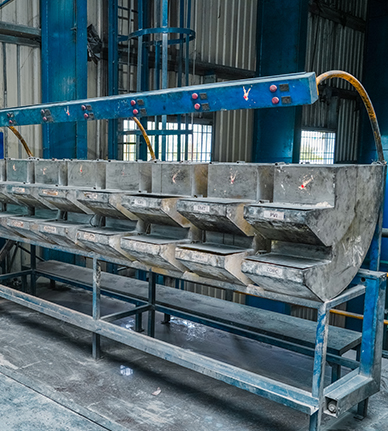

Semi-auto chemical weighing system

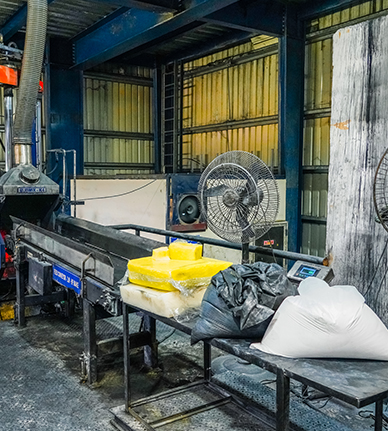

Feed conveying to the mixer with failure-proofing

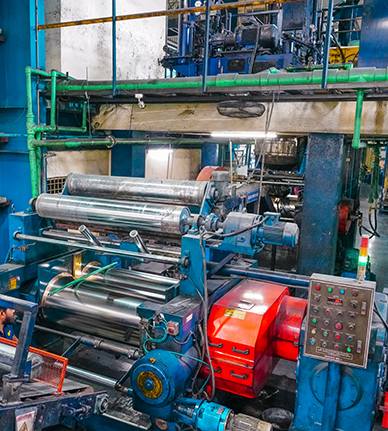

Series-mixing mills for integrated processing

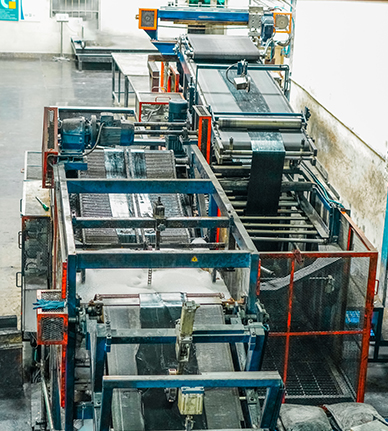

Synchronized batch-off cooling
